搭建基于Suricata+Barnyard2+Base的IDS前端Snorby
乌云历史资料归档
原始作者： rootsecurity 原始编号： superkieran-wooyundrops:97 原始发布时间： 2013-10-02 23:46 声明：内容仅用于技术研究和个人使用，版权归 wooyun.org。
0x00
关于CentOS+Base+Barnyard2+Suricata就不多说了，这里有文章已经写的很详细了。 请参考：http://drops.wooyun.org/tips/413
0x01
这里安装CentOS6系统同样是使用最小化安装，[email protected] @Development Tools @Development Library 系统安装完毕后，初始化安装软件包
[ [email protected] ~]#yum -y install libyaml libyaml-devel gcc gcc-c++ make file file-devel git libxslt-devel curl curl-devel ImageMagic ImageMagic-devel [ [email protected] ~]#yum -y install mysql mysql-libs mysql-server mysql-devel [ [email protected] ~]#/usr/bin/mysql_secure_installation [ [email protected] ~]#yum -y install httpd httpd-devel apr-utils php php-common php-cli php-pear php-curl php-mcrypt php-pecl php-devel php-mysql [ [email protected] ~]#ln -sf /usr/lib64/mysql /usr/lib/mysql [ [email protected] ~]#sed -i 's/Options Indexes FollowSymLinks/Options FollowSymLinks/g' /etc/httpd/conf/httpd.conf [ [email protected] ~]#sed -i 's/ServerTokens OS/ServerTokens Prod/g' /etc/httpd/conf/httpd.conf [ [email protected] ~]#sed -i 's/ServerAdmin [email protected] /ServerAdmin [email protected] /g' /etc/httpd/conf/httpd.conf [ [email protected] ~]#/etc/init.d/httpd restart
0x02
安装Ruby:
[ [email protected] opt]#wget http://ftp.ruby-lang.org/pub/ruby/1.9/ruby-1.9.3-p327.tar.gz [ [email protected] opt]#tar zxvf ruby-1.9.3-p227/ [ [email protected] ruby-1.9.3-p227]#./configure [ [email protected] ruby-1.9.3-p227]#make && make install [ [email protected] ruby-1.9.3-p227]#cd ../
安装openssl extensions
[ [email protected] ~]#cd /opt/ [ [email protected] opt]#cd ruby-1.9.3-p227/ext/openssl [ [email protected] openssl]#ruby extconf.rb [ [email protected] openssl]#make && make install [ [email protected] openssl]#cd ../../../
0x03
安装rubygems
[ [email protected] ~]#cd /opt [ [email protected] opt]#tar zxvf rubygems-1.8.24.tar.gz [ [email protected] opt]#cd rubygems-1.8.24/ [ [email protected] opt]#ruby setup.rb
更改gem源
[ [email protected] ~]#gem sources -l [ [email protected] ~]#gem sources -r https://rubygems.org/ [ [email protected] ~]#gem sources –a http://ruby.taobao.org/ [ [email protected] ~]#gem sources -u
安装gems包
[ [email protected] ~]#gem install bundle [ [email protected] ~]#gem install thor i18n bundler tzinfo builder memcache-client rack rack-test erubis mail rack-mount rails --no-rdoc --no-ri [ [email protected] ~]#gem install tzinfo-data [ [email protected] ~]#gem install rake --version=0.9.2 --no-rdoc --no-ri [ [email protected] ~]#gem uninstall rake --version=0.9.2.2
0x04
安装wkhtmltopdf
[ [email protected] ~]#cd /opt [ [email protected] ~]#wget http://wkhtmltopdf.googlecode.com/files/wkhtmltopdf-0.9.9-static-amd64.tar.bz2 [ [email protected] ~]#tar jxvf wkhtmltopdf-0.9.9-static-amd64.tar.bz2 [ [email protected] ~]#cp wkhtmltopdf-amd64 /usr/local/bin/wkhtmltopdf [ [email protected] ~]#chown root.root /usr/local/bin/wkhtmltopdf
0x05
安装配置snorby:
[ [email protected] ~]#cd /var/www/html [ [email protected] html]#git clone http://github.com/Snorby/snorby.git [ [email protected] html]#cd /var/www/html/snorby/config/ [ [email protected] config]#cp database.yml.example database.yml [ [email protected] config]#cp snorby_config.yml.example snorby_config.yml [ [email protected] config]#chown -R apache.apache /var/www/html/snorby/
修改database.yml，在“Enter Password Here”这里填入MySQL数据库的密码 修改snorby_config.yml，把time_zone前面的注释去掉，并把UTC改为Asia/Chongqing
[ [email protected] config]#cd ../ [ [email protected] snorby]#bundle exec rake snorby:setup [ [email protected] snorby]#bundle exec rails server -e production &
此处开启http://0.0.0.0:3000端口的监听(此步骤需翻墙)
[ [email protected] snorby]#ruby script/delayed_job start RAILS_ENV=production
此处开启snorby的进程
0x06
关于Apache+mod_passenger 关于mod_passenger的配置： 为了方便访问，每次都手动输入3000端口显得非常麻烦，把ruby跟apache结合起来需要mod_passenger，安装过程如下： 1、 使用gem安装passenger
[ [email protected] ~]#gem install --no-ri --no-rdoc passenger
2、 安装apache模块
[ [email protected] ~]#/usr/local/bin/passenger-install-apache2-module –a
3、 配置apache
[ [email protected] ~]#cd /etc/httpd/conf.d/
4、 新建一个snorby.conf
LoadModule passenger_module /usr/local/lib/ruby/gems/1.9.1/gems/passenger-4.0.14/buildout/apache2/mod_passenger.so PassengerRoot /usr/local/lib/ruby/gems/1.9.1/gems/passenger-4.0.14 PassengerDefaultRuby /usr/local/bin/ruby <VirtualHost *:80> ServerName snorby.domain.com # !!! Be sure to point DocumentRoot to 'public'! DocumentRoot /var/www/html/snorby/public <Directory /var/www/html/snorby/public> # This relaxes Apache security settings. AllowOverride all # MultiViews must be turned off. Options -MultiViews </Directory> </VirtualHost>

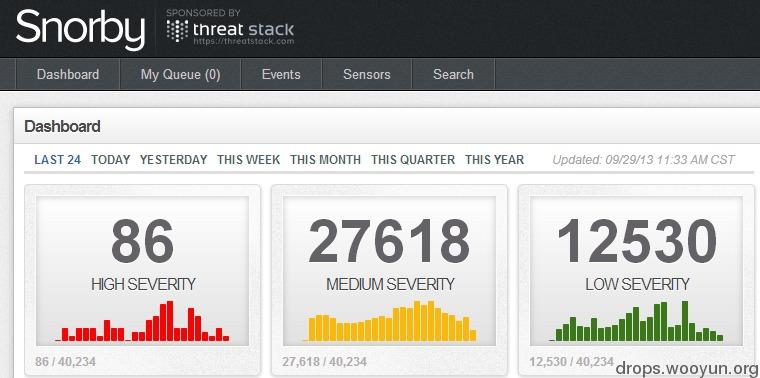

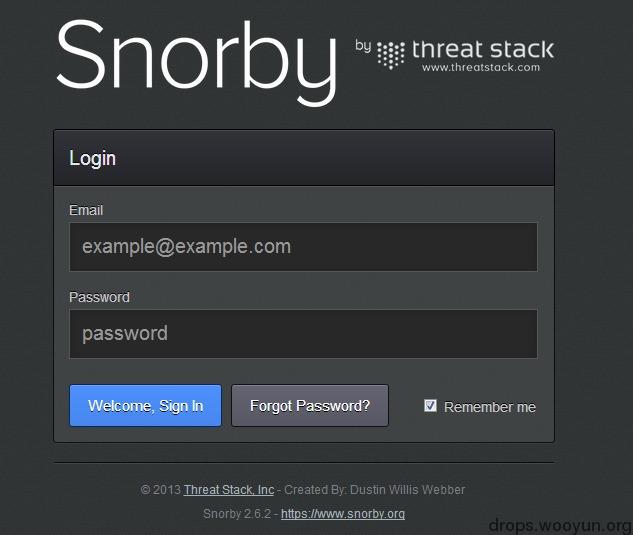

5、 重启apache 6、 界面
